NG(H) sand gravel pump
Type NG (H) pumps are single-stage, single -suction, cantilevered, horizontal, centrifugal slurry pump. They are designed for continously hand ing the most difficult higher abrasive slurries which contain too big sol ids to be pumped by common pumps. They are suitable for delivering slurries in mining， explosive sludge in metal melting, dredging in dredger and course of rivers, and other filed. This series of pump especially suitable for the high flow, high concenration and high head working condition, good performance of NPSH and high abrasion-resistant, can be widely used in high temperature and strong abrasive slurry transportation.
key word:
froth pump、gravel pump
Category:
Horizontal slurry pump
Sand gravel & dredge pump
NG(H) sand gravel pump
Type NG (H) pumps are single-stage, single -suction, cantilevered, horizontal, centrifugal slurry pump. They are designed for continously hand ing the most difficult higher abrasive slurries which contain too big sol ids to be pumped by common pumps. They are suitable for delivering slurries in mining， explosive sludge in metal melting, dredging in dredger and course of rivers, and other filed. This series of pump especially suitable for the high flow, high concenration and high head working condition, good performance of NPSH and high abrasion-resistant, can be widely used in high temperature and strong abrasive slurry transportation.
Performance

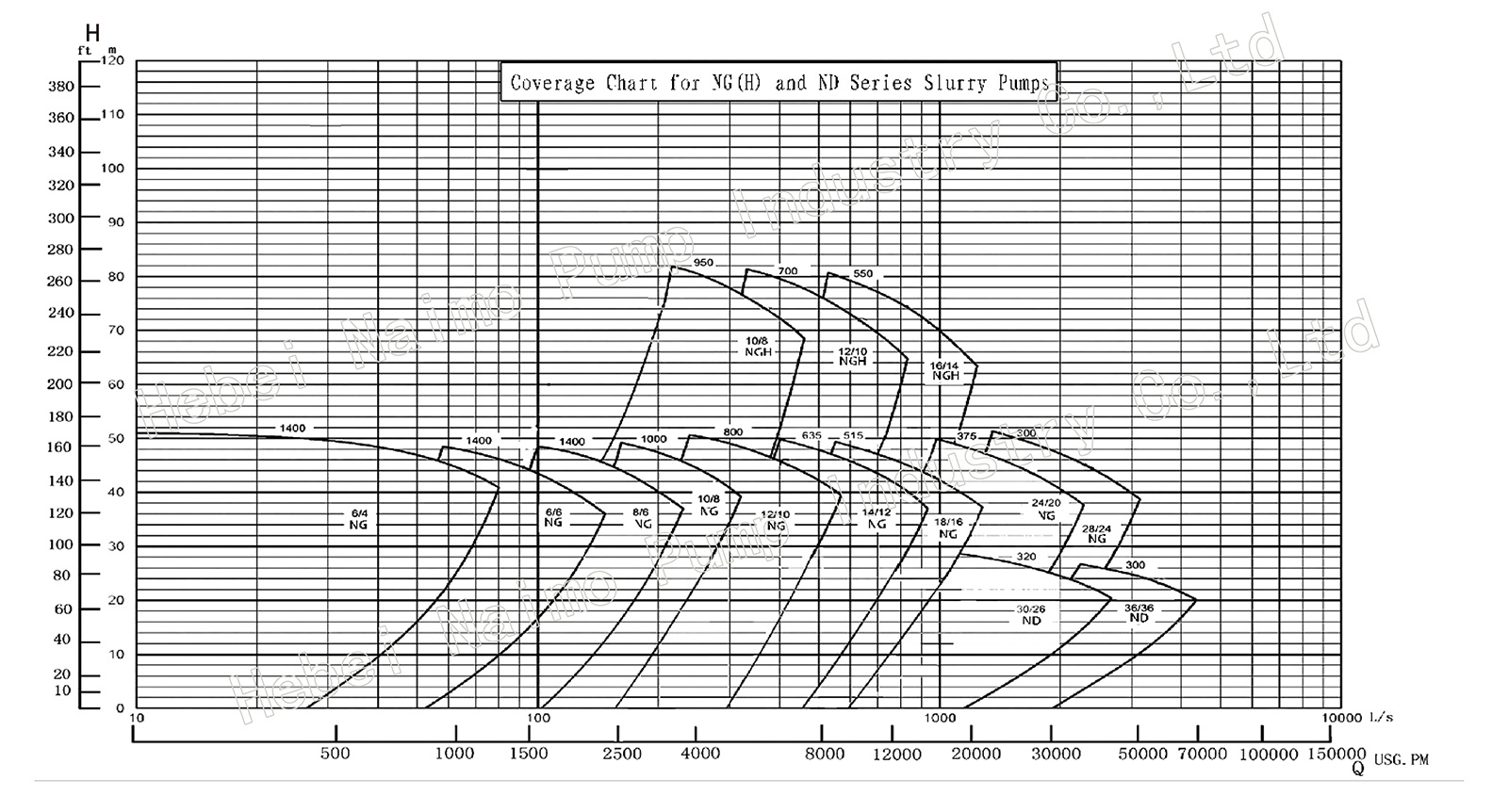

Selection chart

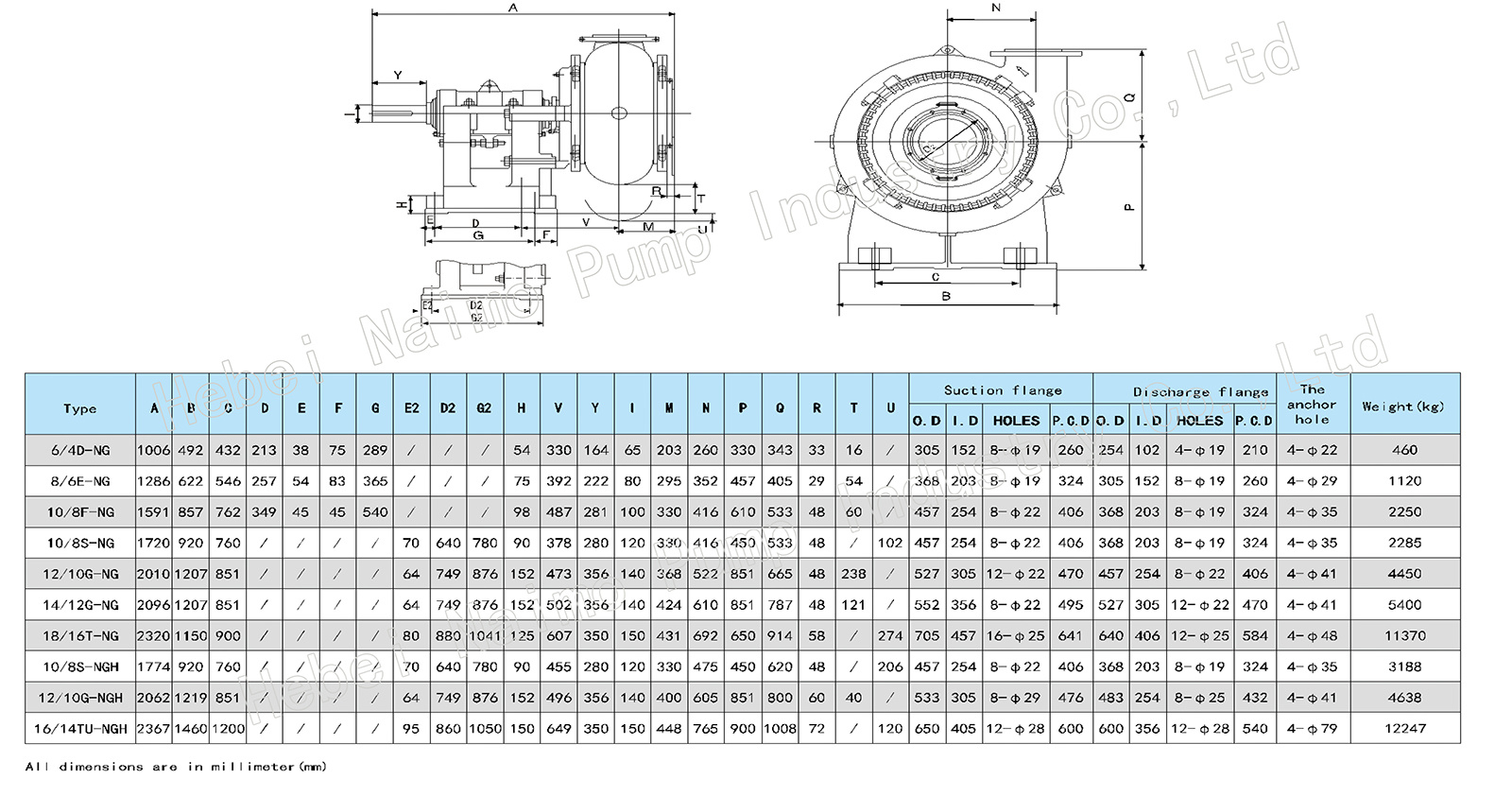

Shap dimension

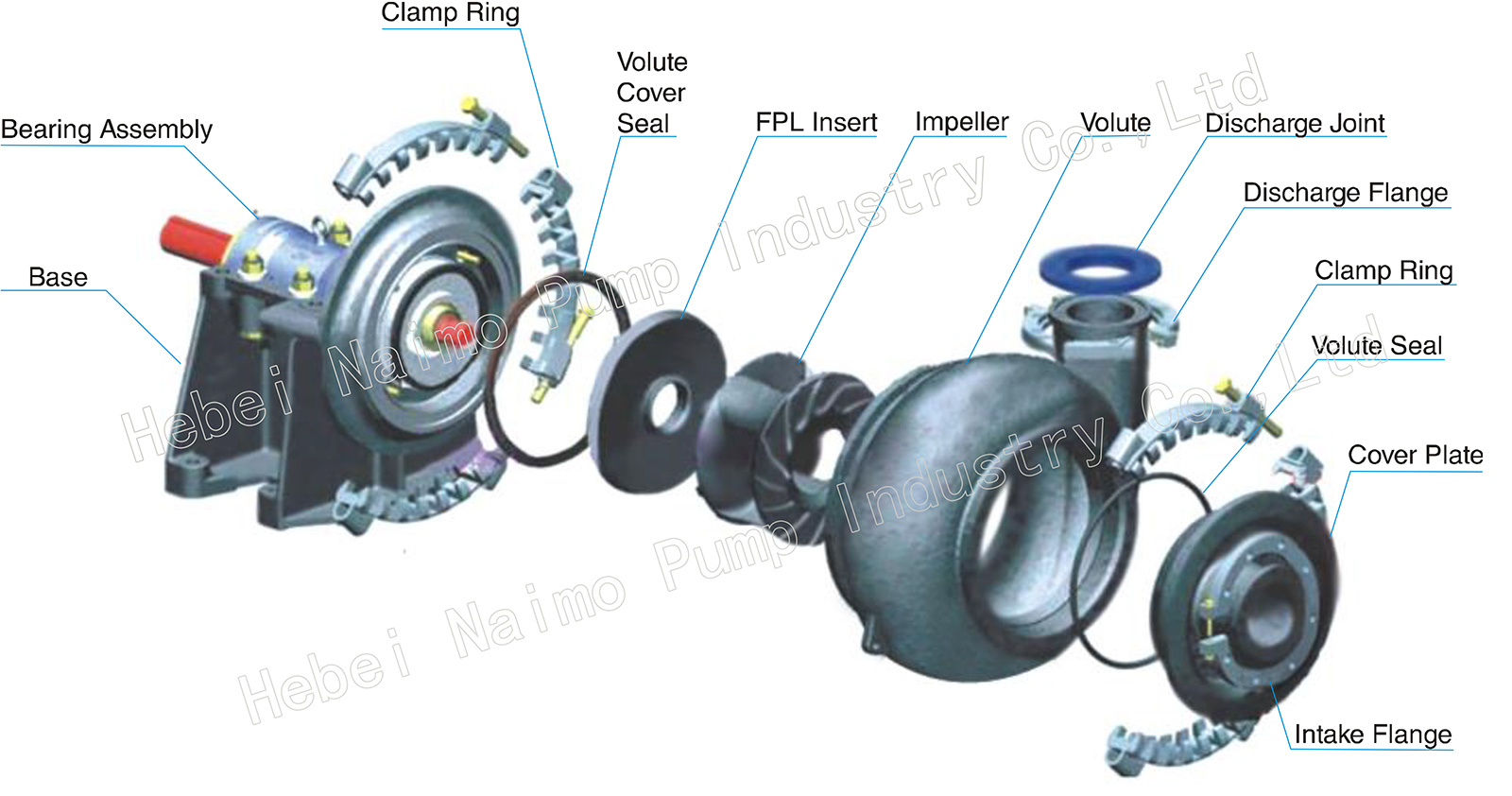

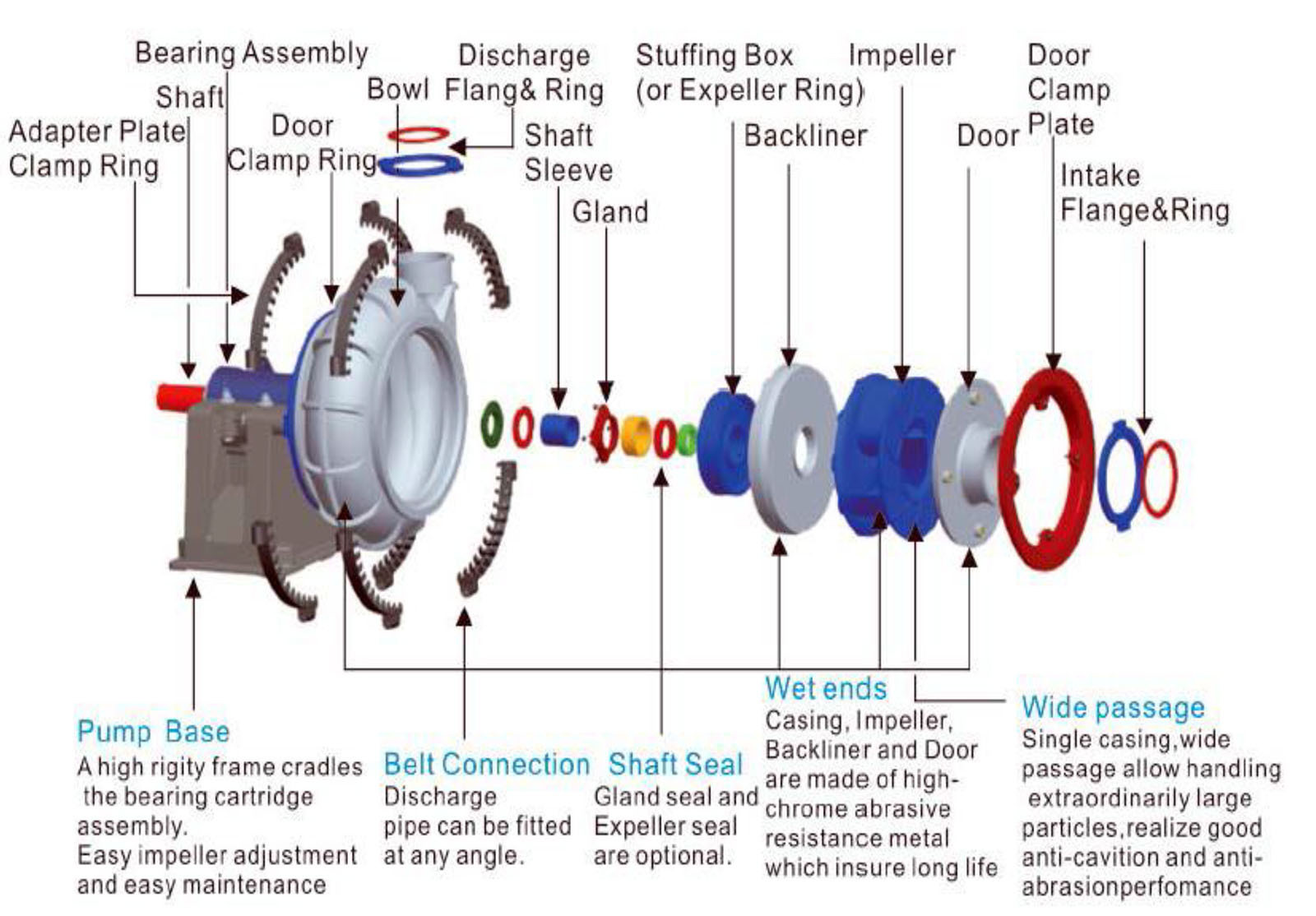

Structure
Material Options
|
Code |
Material # |
Hardness |
Performance |
Application |
|
A01 |
KmTBCr8 |
≥55 |
Abrasion-resistant performance is about 10% less than A05 |
Mud & slag application |
|
A03 |
KmTBNi4Cr2 |
≥56 |
Abrasion-resistant performance is about 20% less than A05 |
Neutral water-sand slurry and applications with lower impact load |
|
A05 |
KmTBCr26 |
≥56 |
Ranks second only to A07 in abrasion-resistant performance; fair corrosion-resistant performance. |
High impact load abrasion condition; PH rate ranging from 5 to 12 |
|
A07 |
KmTBCr15Mo3 |
≥59 |
Best abrasion-resistant performance; corrosion-resistant performance is inferior to A05 |
High impact load abrasion condition |
|
A11 |
KmTBCrMnMo3 |
38-42 |
Mild corrosion-resistant; lower hardness; drilling and tapping operations are applicable. |
Fine particles with light abrasion. |
|
A33 |
|
≥35 |
Abrasion-resistant performance is close to A03; fair corrosion-resistant performance |
Oxide slurry with PH rate no less than 1, like phosphor-gypsum in phosphate fertilizer plant, nitric acid, sulph-oacid and phosphoric acid, etc. |
|
A49 |
|
≥43 |
Fair abrasion-resistant performance, close to A03; fair corrosion-resistant performance in media with lower PH rate. |
Corrosion conditions with low PH rate, especially for flue gas and FGD devices for media of PH≥4; general suitable for lower acid condition. |
|
A12 |
|
≥62 |
Higher abrasion-resistant performance than A05; fair corrosion-resistant performance; suitable for media with PH rate is 6-16, where A05 is not suitable. |
High abrasive slurry with fine particles. |
|
A61 |
|
63-68 |
Optimized abrasion-resistant performance than A12 |
High abrasive slurry with fine particles. |
|
Material |
Material # |
Applications |
|
Natural Rubber |
R08 |
R08 is low to medium hardness rubber used for impellers where slurry contains fine particles and erosive. |
|
Natural Rubber(soft) |
R26 |
R26 is soft natural rubber used for liners where slurry contains fine particle and more erosive. |
|
Natural Rubber(soft) |
R33 |
R33 is widely used for frame plate liners, cover plate liners and impellers. Maximal particle diameter is 10mm; impeller peripheral speed should be less than 25m/s; suitable for temperature not exceeding 75℃. |
|
Natural Rubber |
R55 |
R55 is widely used for impellers, frame plate liners, cover plate liners and throat bushes. Maximal particle diameter can be 20mm, impeller peripheral speed should be less than 27.5m/s; suitable for temperature not exceeding 75℃. |
|
EPDM Rubber |
S01 |
S01 is widely used for impellers, frame plate liners, cover plate liners and throat bushes. Maximal particle diameter can be 8mm; impeller peripheral speed should be less than 25m/s; suitable for temperature not exceeding 120℃(continuous duty) or 140℃(discontinuous duty). |
|
Nitrile Rubber(NBR) |
S12 |
S12 is widely used for frame plate liners, cover plate liners, throat bushes, lip seals, impellers and expellers. Maximal particle diameter is 7mm; impeller peripheral speed should be less than 27m/s; suitable for temperature not exceeding 95℃. |
|
Butyl Rubber |
S21 |
S21 is widely used for impellers, frame plate liners, cover plate liners, expellers, volute seals and throat bushes,. Maximal particle diameter can be 7mm; impeller peripheral speed should be less than 30m/s; suitable for temperature not exceeding 100℃. |
|
Hypalon |
S31 |
S31 can be used for impellers, frame plate liners, cover plate liners and throat bushes,. It is recommended to use for strong acid slurry with mild or moderate corrosion. Maximal particle diameter can be 10mm; impeller peripheral speed should be less than 30m/s; suitable for temperature not exceeding 110℃. |
Consult NAIMO Pump Industry for unlisted materials.
